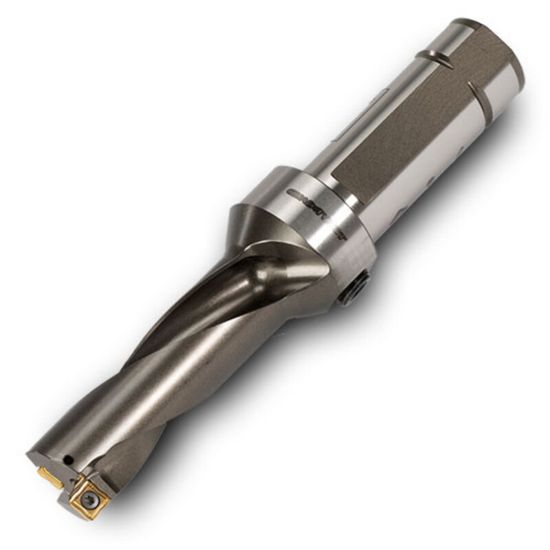

INGERSOLL QR0262105N6R02 1.031 (26.19 mm) Square Insert Indexable Drill s Inch|L:D Ratio - 4:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0262105N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6100297
Delivery date: 3-5 days
$682.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dia Deep 4.0XD
Cut Dia Min 1.0313 26.19MM - 1-1/32
Overall Len 8.7000 220.98MM
Machine Side Connection Size 1.2500 31.75MM
Tool Material Carbide
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 4.1300 104.90MM
Cutter Dia 1.0313 26.19MM - 1-1/32
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
