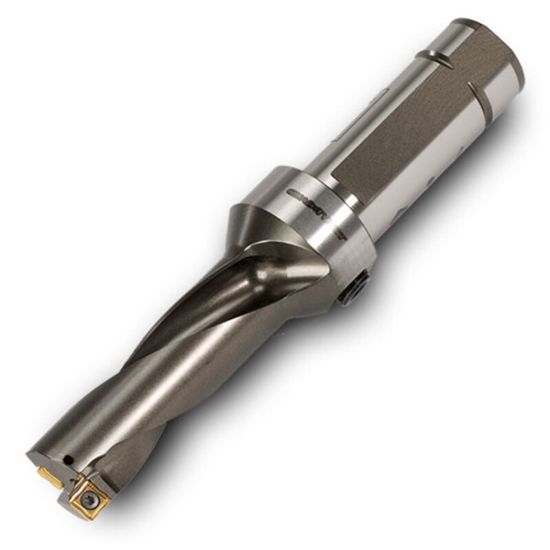

INGERSOLL QR0238095N6R02 0.937 (23.80 mm) Square Insert Indexable Drill s Inch|L:D Ratio - 4:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0238095N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6100284
Delivery date: 3-5 days
$612.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.9370 23.80MM
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 2
Dia Deep 4.0XD
Flute Length 3.7500 95.25MM
Tool Material Carbide
Cutter Dia 0.9370 23.80MM
Overall Len 8.3500 212.09MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
