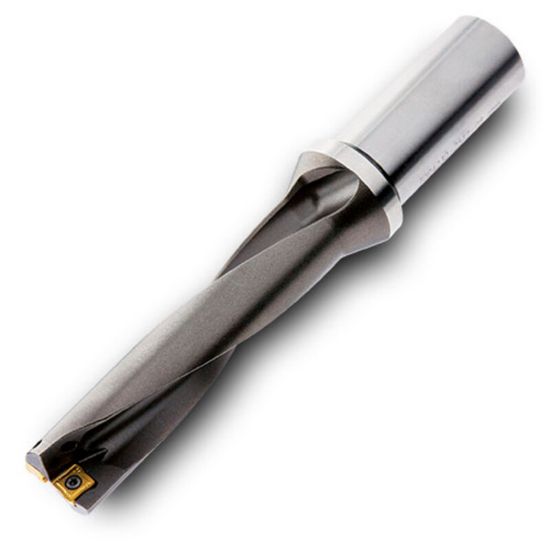

INGERSOLL QR0145045JER00 0.571 (14.50 mm) Square Insert Indexable Drill s Metric|L:D Ratio - 3:1|For Lathe Application: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0145045JER00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3212441
Delivery date: 3-5 days
$460.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flute Length 1.7720 45.01MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutter Dia 0.5709 14.50MM
Overall Len 4.4882 114.00MM
Tool Material Carbide
Dia Deep 3.0XD
Cut Dia Min 0.5709 14.50MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
