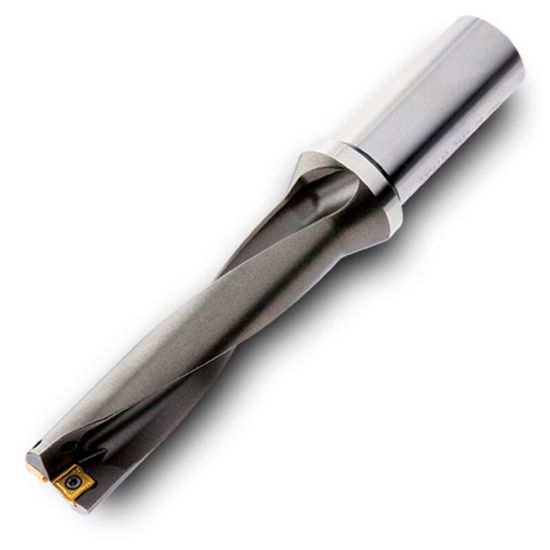

INGERSOLL QR0125063JER00 0.492 (12.50 mm) Square Insert Indexable Metric Drill s|L:D Ratio - 5:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0125063JER00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6191137
Delivery date: 3-5 days
$575.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Overall Len 5.3150 135.00MM
Flutes/Inserts 2
Flute Length 2.5590 65.00MM
Dia Deep 5.0XD
Cutter Dia 0.4921 12.50MM
Shank/Pilot Dia 0.7874 20.00MM
Cut Dia Min 0.4921 12.50MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.7874 20.00MM
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
