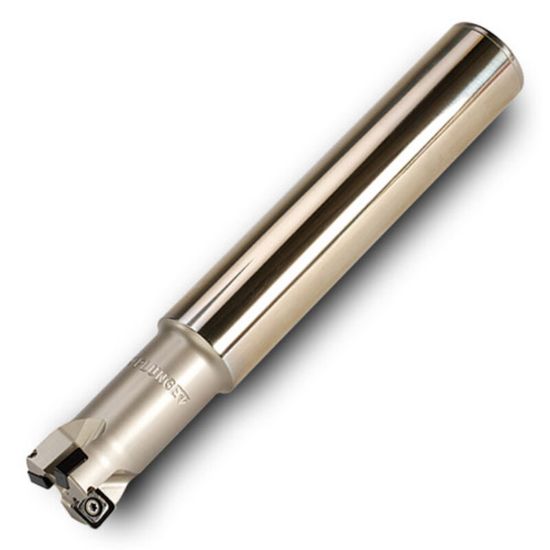

Picture of INGERSOLL QHU-15073S5R01 Milling Cutter 1.500 Cylindrical 1.5000 3 Flute 0.45 Max DOC 10.00 OAL

INGERSOLL QHU-15073S5R01 Milling Cutter 1.500 Cylindrical 1.5000 3 Flute 0.45 Max DOC 10.00 OAL

ANSI: QHU-15073S5R01

ISO: QHU-15073S5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2909981
Delivery date: 3-5 days
$471.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Plunge Milling
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Tool Material Steel
Depth Of Cut Max 0.4500
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
