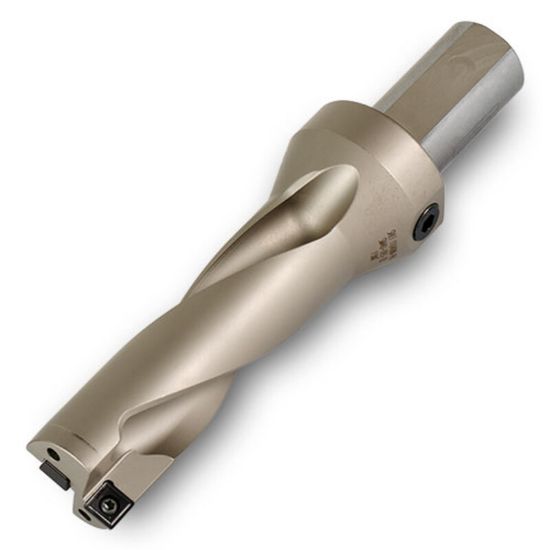

INGERSOLL QF0508152N7R01 2.000 (50.80 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0508152N7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181062
Delivery date: 3-5 days
$852.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Cutter Dia 2.0000 50.80MM
Tool Material Carbide
Flute Length 6.0000 152.40MM
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 10.9800 278.89MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
