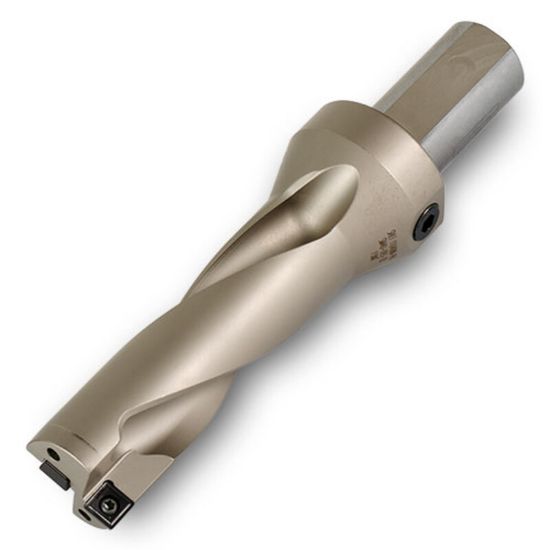

INGERSOLL QF0492148N7R01 1.937 (49.20 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0492148N7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181095
Delivery date: 3-5 days
$852.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Tool Material Carbide
Cut Dia Min 1.9375 49.21MM - 1-15/16
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Flute Length 5.8100 147.57MM
Cutter Dia 1.9375 49.21MM - 1-15/16
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Overall Len 10.6700 271.02MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
