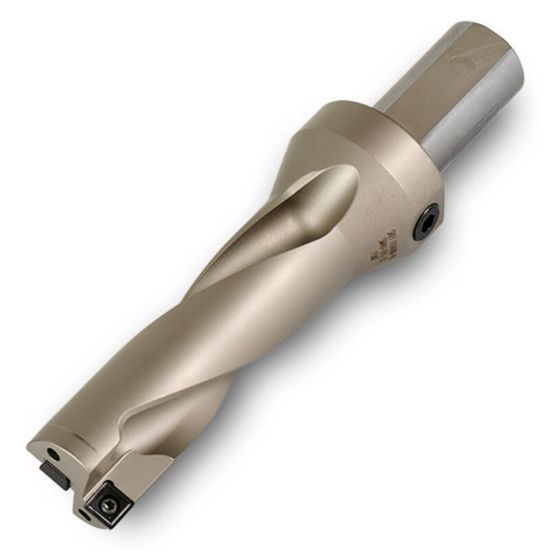

INGERSOLL QF0476143N7R01 1.875 (47.63 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0476143N7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181094
Delivery date: 3-5 days
$852.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.8750 47.63MM - 1-7/8
Cutter Dia 1.8750 47.63MM - 1-7/8
Tool Material Carbide
Dia Deep 3.0XD
Flutes/Inserts 2
Overall Len 10.5500 267.97MM
Flute Length 5.6300 143.00MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
