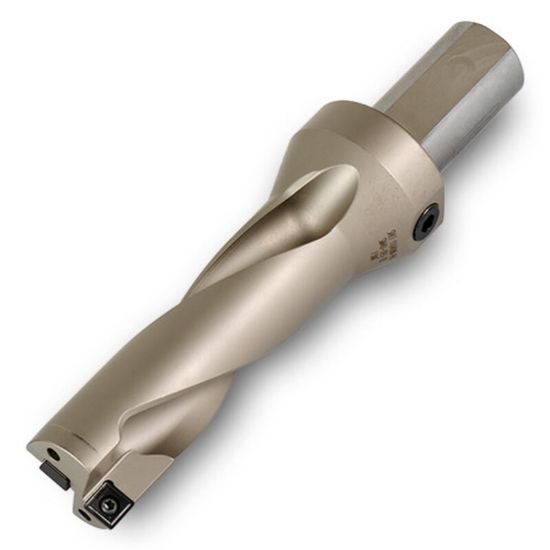

INGERSOLL QF0428128N6R01 1.687 (42.85 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0428128N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181091
Delivery date: 3-5 days
$792.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Flute Length 5.0600 128.52MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.6870 42.85MM
Flutes/Inserts 2
Cutter Dia 1.6870 42.85MM
Machine Side Connection Size 1.2500 31.75MM
Overall Len 9.8000 248.92MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
