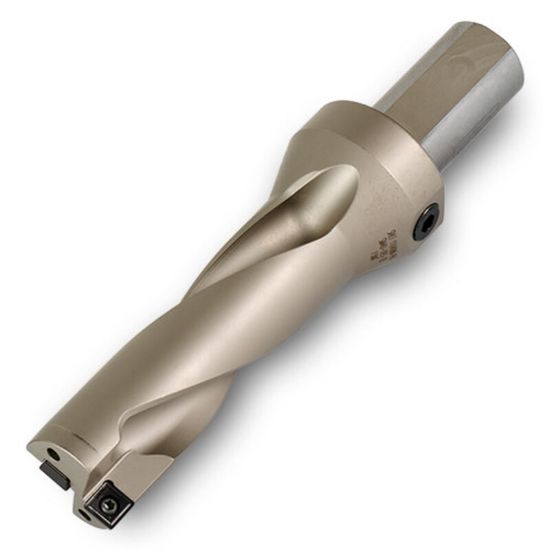

INGERSOLL QF0365110N6R01 1.437 (36.50 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0365110N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181087
Delivery date: 3-5 days
$724.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.4375 36.51MM - 1-7/16
Tool Material Carbide
Flute Length 4.3100 109.47MM
Flutes/Inserts 2
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.4375 36.51MM - 1-7/16
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 8.5400 216.92MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
