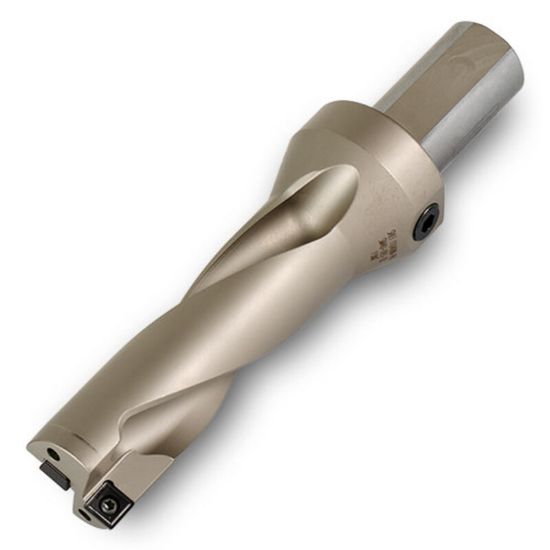

INGERSOLL QF0341102N6R01 1.343 (34.11 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0341102N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181085
Delivery date: 3-5 days
$683.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutter Dia 1.3438 34.13MM - 1-11/32
Overall Len 8.0700 204.98MM
Dia Deep 3.0XD
Machine Side Connection Type Boring Bar,Weldon
Tool Material Carbide
Cut Dia Min 1.3438 34.13MM - 1-11/32
Flute Length 4.0300 102.36MM
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
