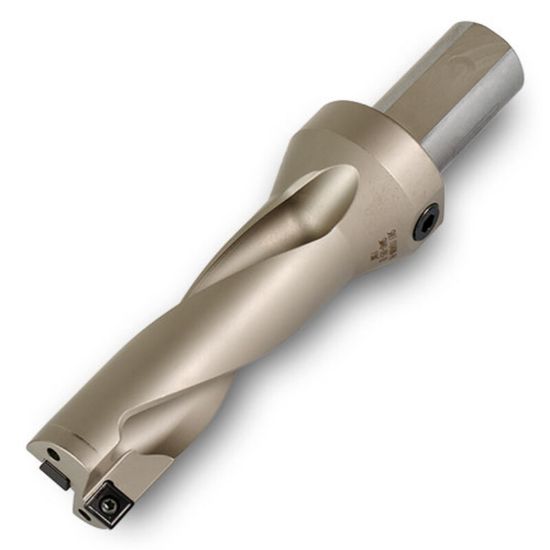

INGERSOLL QF0325098N6R01 1.281 (32.54 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0325098N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3224082
Delivery date: 3-5 days
$683.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Overall Len 7.9500 201.93MM
Tool Material Carbide
Cut Dia Min 1.2810 32.54MM - 1-9/32
Flutes/Inserts 2
Flute Length 3.8400 97.54MM
Cutter Dia 1.2813 32.54MM - 1-9/32
Dia Deep 3.0XD
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
