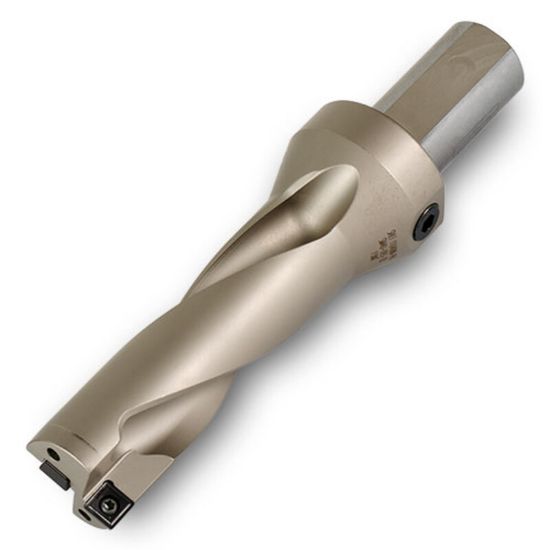

INGERSOLL QF0286086N6R01 1.125 (28.58 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0286086N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181082
Delivery date: 3-5 days
$630.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.1250 28.58MM - 1-1/8
Tool Material Carbide
Dia Deep 3.0XD
Flute Length 3.3800 85.85MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Overall Len 7.2800 184.91MM
Cut Dia Min 1.1250 28.58MM - 1-1/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
