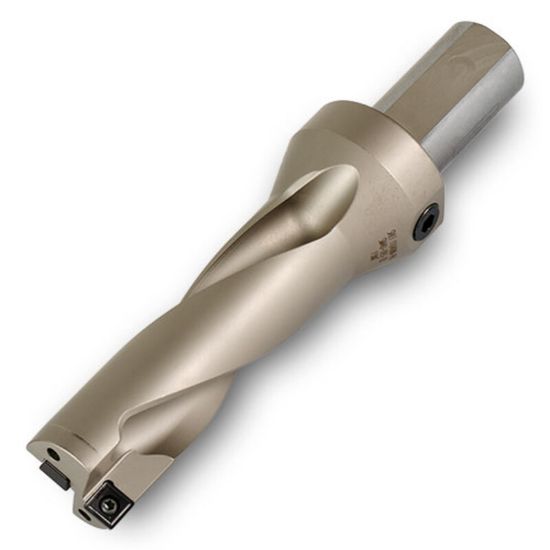

INGERSOLL QF0159048N5R01 0.626 (15.90 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1|

ISO: QF0159048N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6181077
Delivery date: 3-5 days
$512.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Dia Deep 3.0XD
Cutter Dia 0.6263 15.91MM - 21/32
Overall Len 5.2000 132.08MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 1.8800 47.75MM
Cut Dia Min 0.6263 15.91MM - 21/32
Flutes/Inserts 2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
