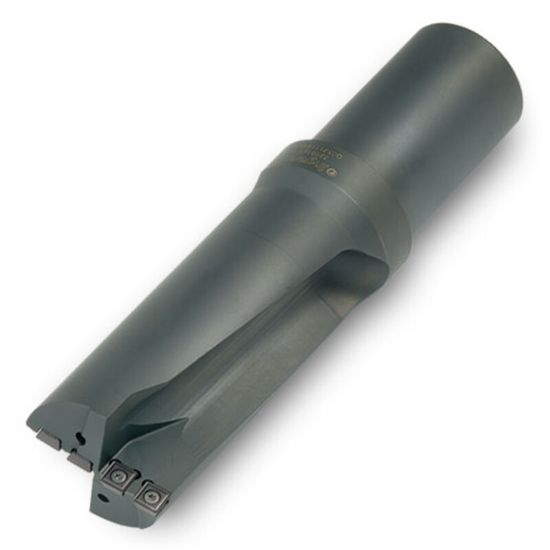

INGERSOLL Q0730292N8R01 2.875 (73.03 mm) Large Diameter Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0730292N8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3200025
Delivery date: 3-5 days
$1,530.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Overall Len 16.2500 412.75MM
Cut Dia Min 2.8750 73.03MM - 2-7/8
Dia Deep 4.0XD
Flute Length 11.5000 292.10MM
Cutter Dia 2.8750 73.03MM - 2-7/8
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
