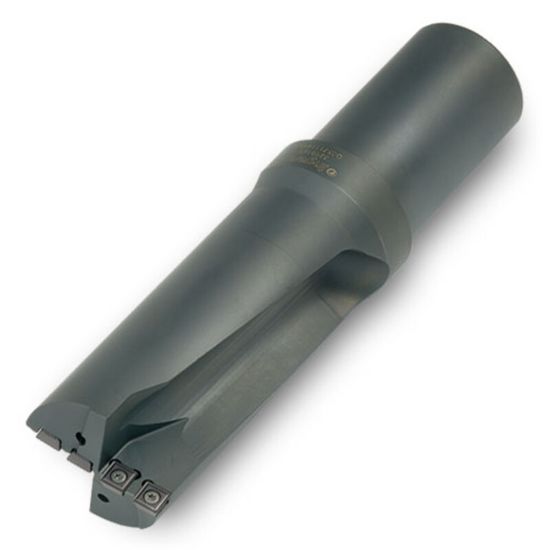

INGERSOLL Q0635254N8R01 2.500 (63.50 mm) Large Diameter Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0635254N8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221051
Delivery date: 3-5 days
$1,260.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Dia Deep 4.0XD
Cut Dia Min 2.5000 63.50MM - 2-1/2
Tool Material Carbide
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 14.6300 371.60MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 2
Flute Length 10.0000 254.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
