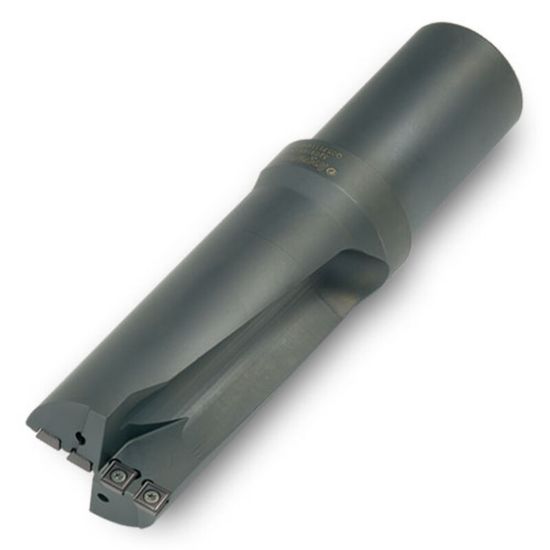

INGERSOLL Q0635191N8R01 2.500 (63.50 mm) Large Diameter Indexable Drill s|L:D Ratio - 3:1|

ISO: Q0635191N8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3200014
Delivery date: 3-5 days
$1,120.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Multi Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Shank/Pilot Dia 2.0000 50.80MM - 2
Overall Len 12.1300 308.10MM
Flutes/Inserts 2
Flute Length 7.5000 190.50MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Tool Material Carbide
Dia Deep 3.0XD
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
