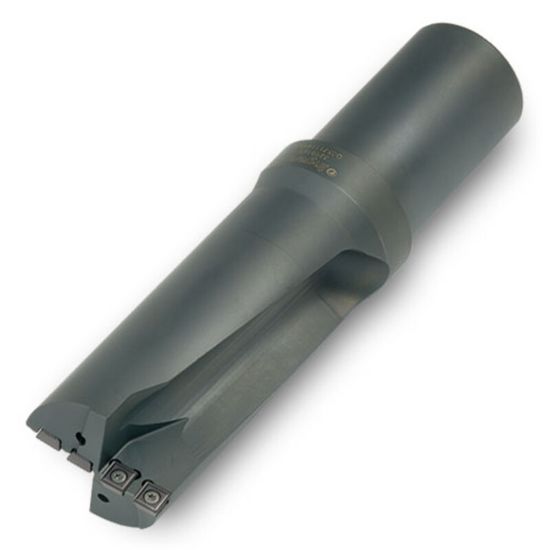

INGERSOLL Q0603241N8R01 2.375 (60.33 mm) Large Diameter Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0603241N8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3200022
Delivery date: 3-5 days
$1,260.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 2.3750 60.33MM - 2-3/8
Flutes/Inserts 2
Flute Length 9.5000 241.30MM
Machine Side Connection Size 2.0000 50.80MM
Overall Len 14.5000 368.30MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 2.3750 60.33MM - 2-3/8
Tool Material Carbide
Shank/Pilot Dia 2.0000 50.80MM - 2
Dia Deep 4.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
