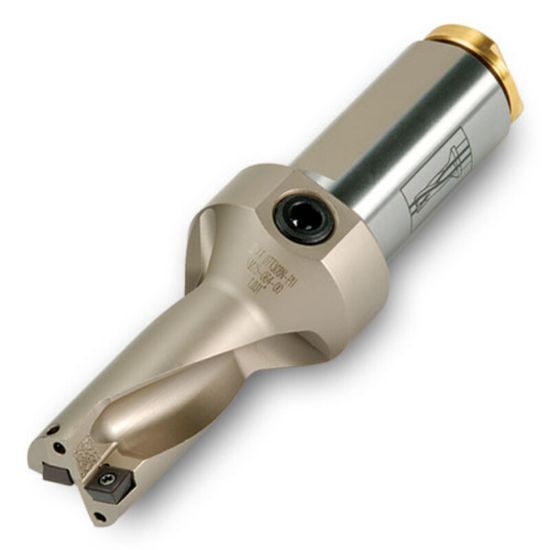

INGERSOLL Q0500100N7R01 1.969 (50.01 mm) Square Insert Indexable Drill s|L:D Ratio - 2:1|

ISO: Q0500100N7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240671
Delivery date: 3-5 days
$824.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Overall Len 8.8600 225.04MM
Tool Material Carbide
Dia Deep 2.0XD
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flute Length 3.9400 100.08MM
Cut Dia Min 1.9688 50.01MM - 1-31/32
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.9688 50.01MM - 1-31/32
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
