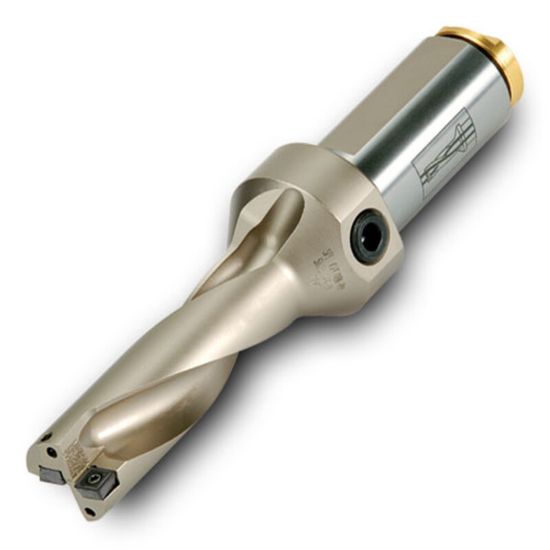

INGERSOLL Q0437131N6R01 1.719 (43.66 mm) Square Insert Indexable Drill s|L:D Ratio - 3:1|

ISO: Q0437131N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180767
Delivery date: 3-5 days
$812.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.7188 43.66MM - 1-23/32
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.7188 43.66MM - 1-23/32
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Machine Side Connection Size 1.2500 31.75MM
Overall Len 9.5300 242.06MM
Flutes/Inserts 2
Tool Material Carbide
Flute Length 5.1600 131.06MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
