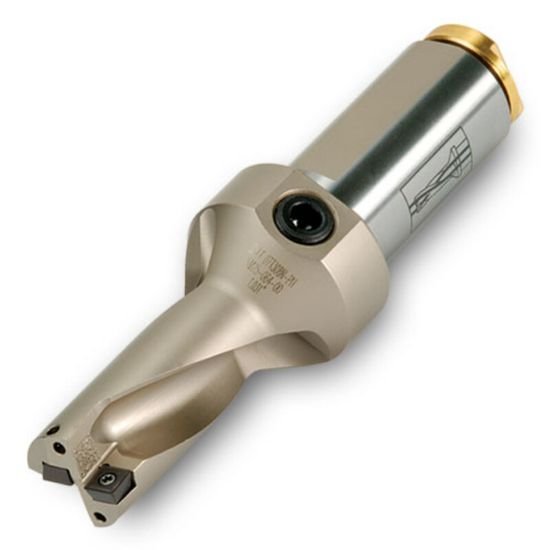

Picture of Ingersoll Q0405081N6R01 1.594 (40.49 mm) Square Insert Indexable Drills L:D Ratio - 2:1

Ingersoll Q0405081N6R01 1.594 (40.49 mm) Square Insert Indexable Drills L:D Ratio - 2:1

Part Number: ING6180749 ISO: Q0405081N6R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1107147

Description

INGERSOLL 6180749 1.594 (40.49 mm) Square Insert Indexable Drills|L:D Ratio - 2:1| Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 7.5200 191.01MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.5938 40.48MM - 1-19/32
Flute Length 3.1900 81.03MM
Dia Deep 2.0x Dia
Performance & Capacity
Cut Dia Min 1.5938 40.48MM - 1-19/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
