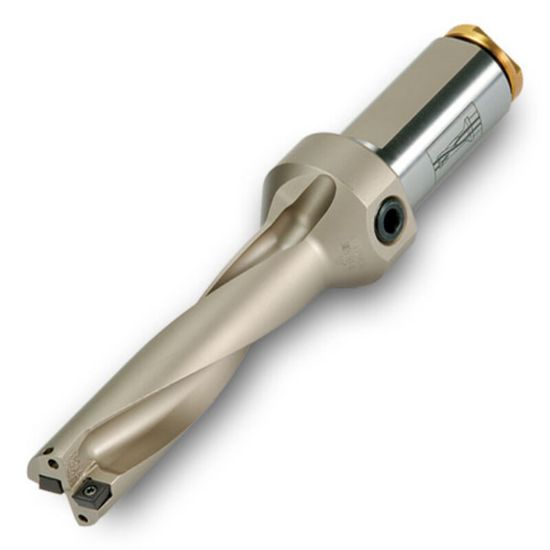

INGERSOLL Q0389156N6R01 1.531 (38.89 mm) Square Insert Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0389156N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180774
Delivery date: 3-5 days
$896.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.5312 38.90MM - 1-17/32
Cut Dia Min 1.5312 38.90MM - 1-17/32
Overall Len 10.3500 262.89MM
Flute Length 6.1200 155.45MM
Flutes/Inserts 2
Dia Deep 4.0XD
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
