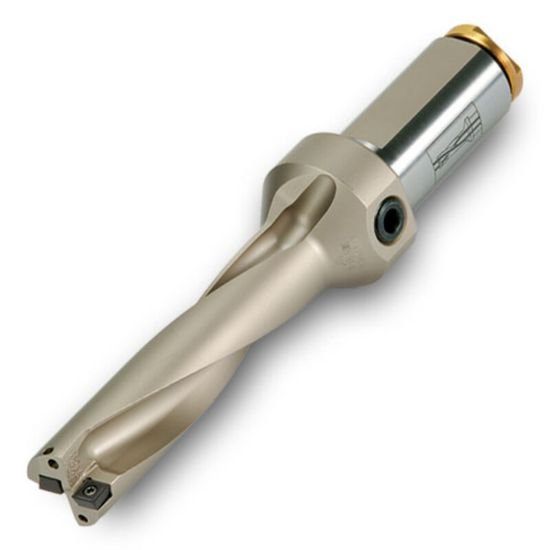

Picture of Ingersoll Q0365146N6R01 1.437 (36.50 mm) Square Insert Indexable Drills L:D Ratio - 4:1

Ingersoll Q0365146N6R01 1.437 (36.50 mm) Square Insert Indexable Drills L:D Ratio - 4:1

Part Number: ING6180773 ISO: Q0365146N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107170
Vendor: Sussex Tool and Supply
$910.00
INGERSOLL 6180773 1.437 (36.50 mm) Square Insert Indexable Drills|L:D Ratio - 4:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 10.0000 254.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4375 36.51MM - 1-7/16
Type Of Tool Drill
Flute Length 5.7500 146.05MM
Cut Dia Min 1.4375 36.51MM - 1-7/16
Dia Deep 4.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
