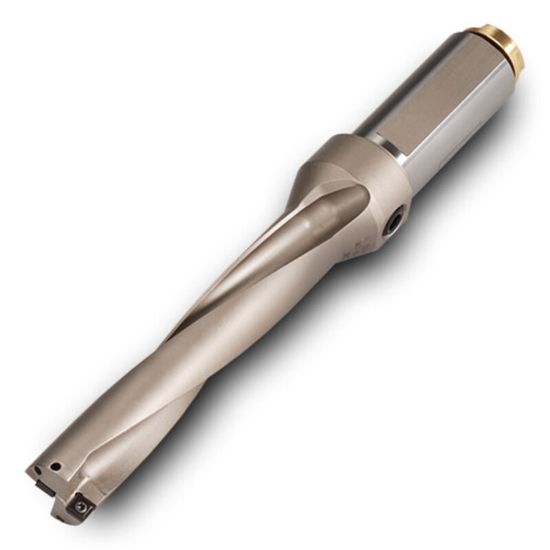

INGERSOLL Q0357179N6R02 1.406 (35.71 mm) Square Insert Indexable Drill s|L:D Ratio - 5:1|

ISO: Q0357179N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180997
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.4062 35.72MM - 1-13/32
Tool Material Carbide
Flutes/Inserts 2
Cutter Dia 1.4062 35.72MM - 1-13/32
Overall Len 11.2100 284.73MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 7.0300 178.56MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
