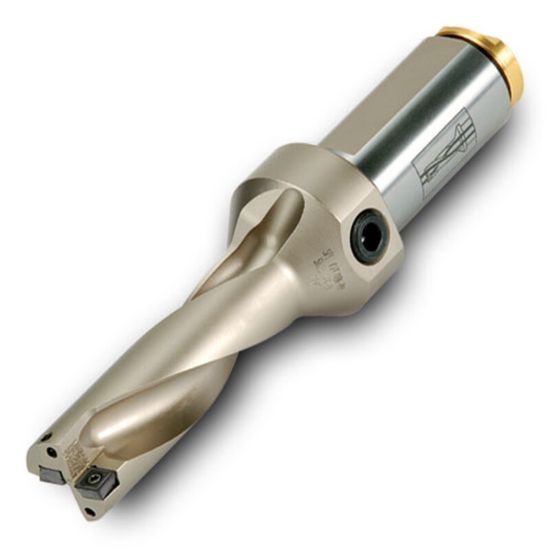

INGERSOLL Q0357107N6R02 1.406 (35.71 mm) Square Insert Indexable Drill s|L:D Ratio - 3:1|

ISO: Q0357107N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180825
Delivery date: 3-5 days
$752.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.4062 35.72MM - 1-13/32
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 4.2200 107.19MM
Cut Dia Min 1.4062 35.72MM - 1-13/32
Tool Material Carbide
Machine Side Connection Type Boring Bar,Weldon
Overall Len 8.3800 212.85MM
Dia Deep 3.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
