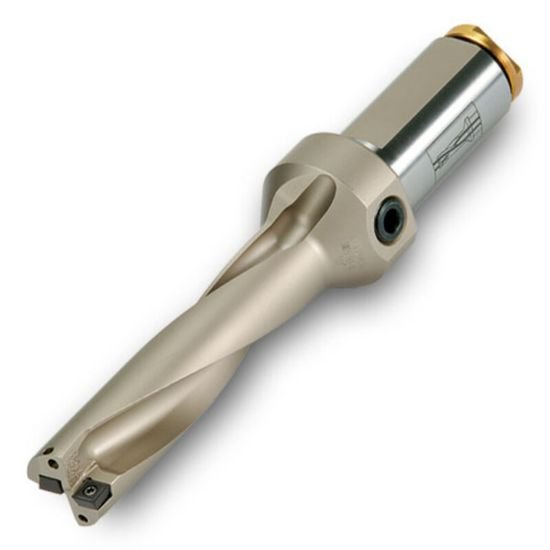

Picture of Ingersoll Q0341136N6R02 1.343 (34.11 mm) Square Insert Indexable Drills L:D Ratio - 4:1

Ingersoll Q0341136N6R02 1.343 (34.11 mm) Square Insert Indexable Drills L:D Ratio - 4:1

Part Number: ING6181387 ISO: Q0341136N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107211
Vendor: Sussex Tool and Supply
$910.00
INGERSOLL 6181387 1.343 (34.11 mm) Square Insert Indexable Drills|L:D Ratio - 4:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 9.3300 236.98MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.3438 34.13MM - 1-11/32
Type Of Tool Drill
Flute Length 5.3700 136.40MM
Cut Dia Min 1.3438 34.13MM - 1-11/32
Dia Deep 4.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
