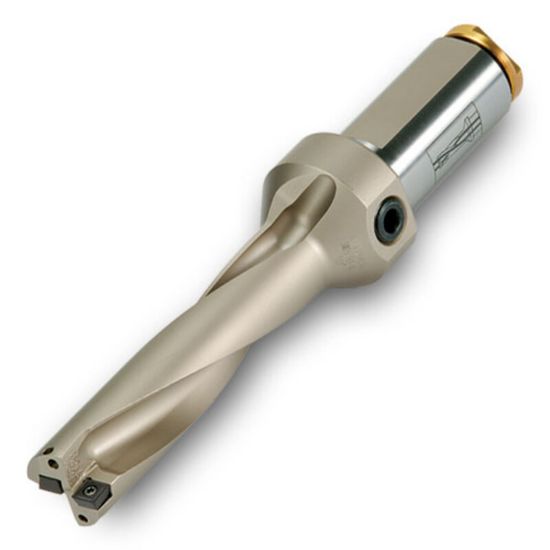

INGERSOLL Q0294118N6R01 1.156 (29.36 mm) Square Insert Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0294118N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180769
Delivery date: 3-5 days
$751.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dia Deep 4.0XD
Cut Dia Min 1.1562 29.37MM - 1-5/32
Overall Len 8.7000 220.98MM
Machine Side Connection Size 1.2500 31.75MM
Flute Length 4.6200 117.35MM
Tool Material Carbide
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.1562 29.37MM - 1-5/32
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
