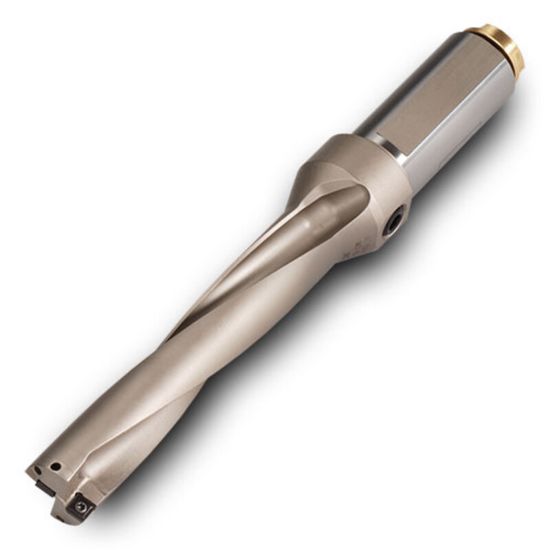

INGERSOLL Q0286143N6R02 1.125 (28.58 mm) Square Insert Indexable Drill s|L:D Ratio - 5:1|

ISO: Q0286143N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180988
Delivery date: 3-5 days
$816.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.1250 28.58MM - 1-1/8
Tool Material Carbide
Flute Length 5.6200 142.75MM
Cut Dia Min 1.1250 28.58MM - 1-1/8
Overall Len 9.5700 243.08MM
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
