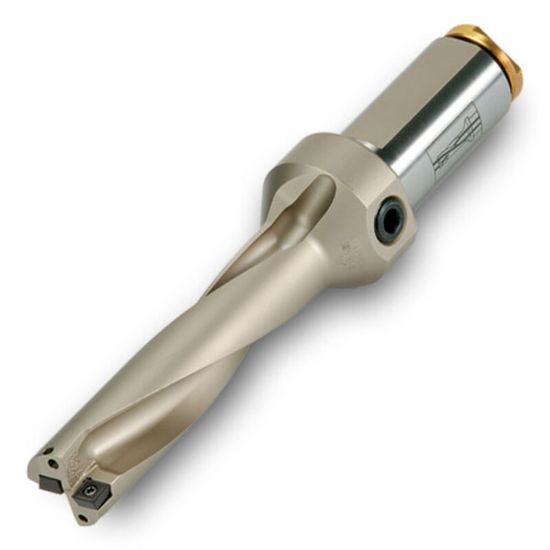

INGERSOLL Q0278111N6R02 1.094 (27.79 mm) Square Insert Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0278111N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180828
Delivery date: 3-5 days
$751.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.0937 27.78MM - 1-3/32
Cut Dia Min 1.0937 27.78MM - 1-3/32
Flutes/Inserts 2
Tool Material Carbide
Dia Deep 4.0XD
Machine Side Connection Size 1.2500 31.75MM
Overall Len 7.7900 197.87MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 4.3800 111.25MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
