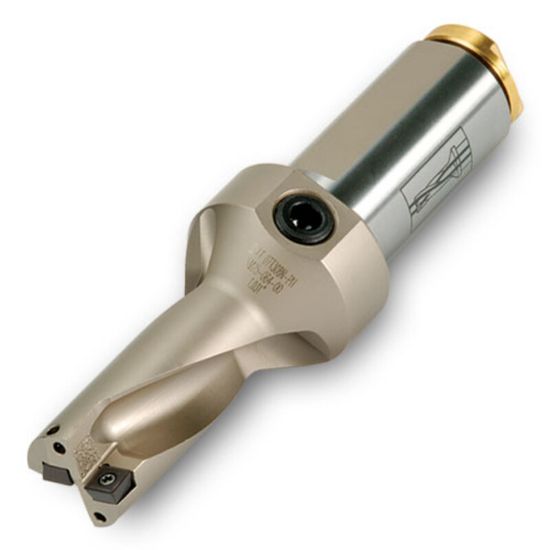

INGERSOLL Q0278056N6R02 1.094 (27.79 mm) Square Insert Indexable Drill s|L:D Ratio - 2:1|

ISO: Q0278056N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3211756
Delivery date: 3-5 days
$620.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0600 153.92MM
Flute Length 2.1900 55.63MM
Cutter Dia 1.0937 27.78MM - 1-3/32
Cut Dia Min 1.0937 27.78MM - 1-3/32
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Carbide
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 2.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
