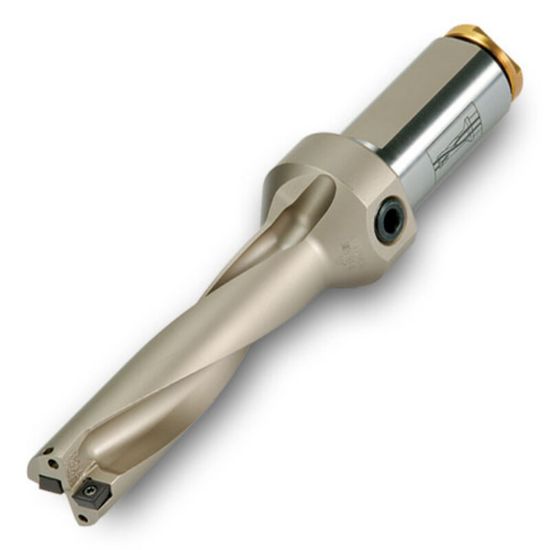

INGERSOLL Q0250100N6R01 0.984 (24.99 mm) Square Insert Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0250100N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240770
Delivery date: 3-5 days
$673.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Flute Length 3.9400 100.08MM
Tool Material Carbide
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Boring Bar,Weldon
Overall Len 7.7600 197.10MM
Cut Dia Min 0.9843 25.00MM - 63/64
Cutter Dia 0.9844 25.00MM - 63/64
Dia Deep 4.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
