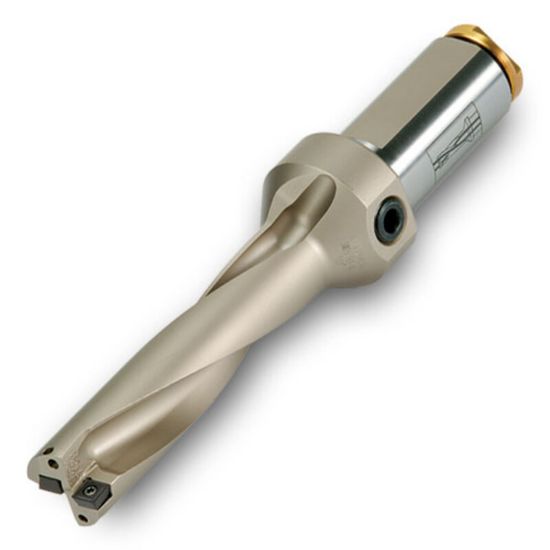

INGERSOLL Q0238095N6R01 0.938 (23.83 mm) Square Insert Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0238095N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240703
Delivery date: 3-5 days
$673.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.9375 23.81MM - 15/16
Dia Deep 4.0XD
Flutes/Inserts 2
Flute Length 3.7500 95.25MM
Machine Side Connection Size 1.2500 31.75MM
Overall Len 7.5600 192.02MM
Tool Material Carbide
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 0.9375 23.81MM - 15/16
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
