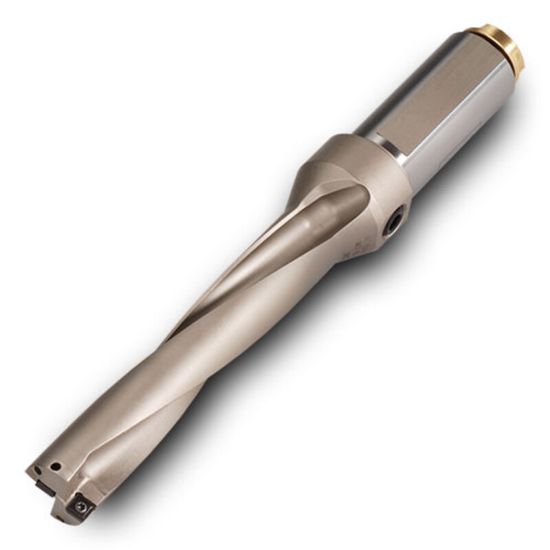

INGERSOLL Q0230115N6R01 0.906 (23.01 mm) Square Insert Indexable Drill s|L:D Ratio - 5:1|

ISO: Q0230115N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3211919
Delivery date: 3-5 days
$734.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 8.2700 210.06MM
Dia Deep 5.0XD
Cutter Dia 0.9063 23.02MM - 29/32
Flute Length 4.5300 115.06MM
Flutes/Inserts 2
Cut Dia Min 0.9062 23.02MM - 29/32
Machine Side Connection Type Boring Bar,Weldon
Tool Material Carbide
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
