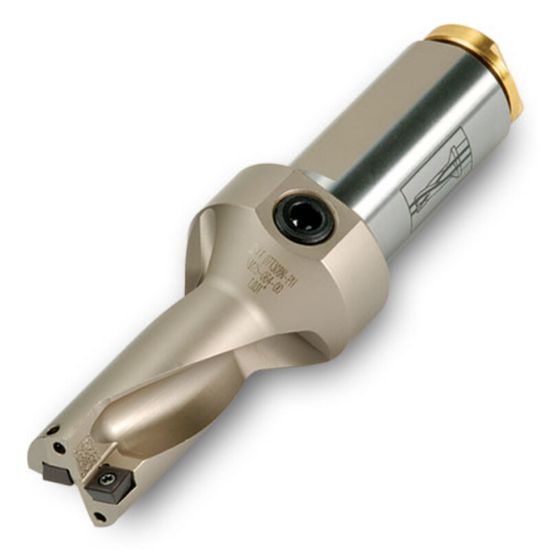

INGERSOLL Q0214042N5R02 0.843 (21.41 mm) Square Insert Indexable Drill s|L:D Ratio - 2:1|

ISO: Q0214042N5R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3211750
Delivery date: 3-5 days
$550.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Flute Length 1.6900 42.93MM
Cut Dia Min 0.8438 21.43MM - 27/32
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 2.0XD
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.1600 131.06MM
Cutter Dia 0.8438 21.43MM - 27/32
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
