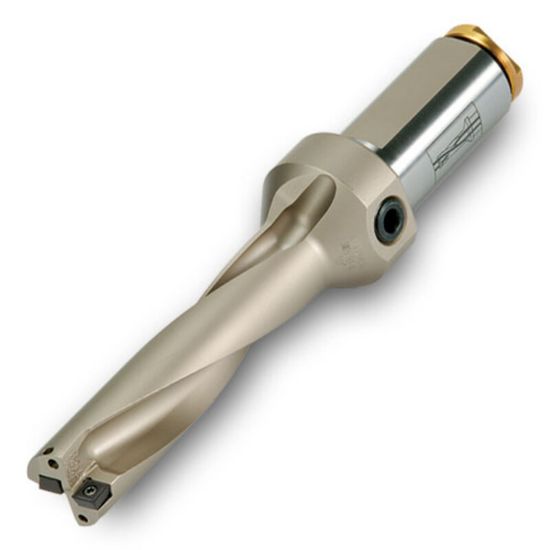

INGERSOLL Q0206082N5R01 0.813 (20.65 mm) Square Insert Indexable Drill s|L:D Ratio - 4:1|

ISO: Q0206082N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240701
Delivery date: 3-5 days
$673.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dia Deep 4.0XD
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.8130 20.65MM
Shank/Pilot Dia 1.0000 25.40MM
Flute Length 3.2500 82.55MM
Overall Len 6.7300 170.94MM
Flutes/Inserts 2
Cutter Dia 0.8130 20.65MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
