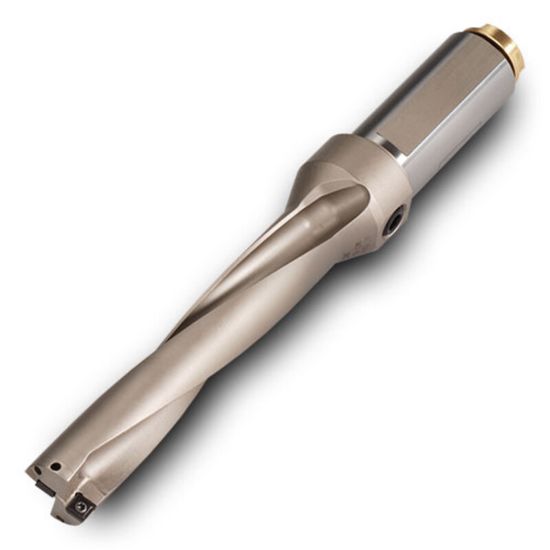

INGERSOLL Q0175087N5R01 0.688 (17.48 mm) Square Insert Indexable Drill s|L:D Ratio - 5:1|

ISO: Q0175087N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3211912
Delivery date: 3-5 days
$666.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.8900 175.01MM
Flutes/Inserts 2
Cut Dia Min 0.6875 17.46MM - 11/16
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Dia Deep 5.0XD
Cutter Dia 0.6875 17.46MM - 11/16
Flute Length 3.4400 87.38MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
