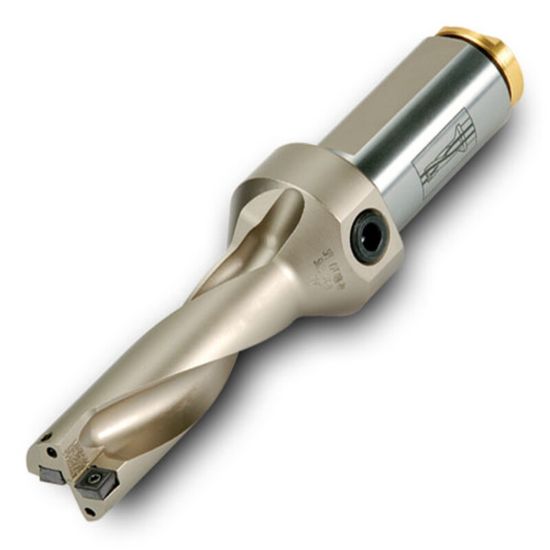

INGERSOLL Q0143043N5R01 0.563 (14.30 mm) Square Insert Indexable Drill s|L:D Ratio - 3:1|

ISO: Q0143043N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180723
Delivery date: 3-5 days
$506.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.8800 123.95MM
Flutes/Inserts 2
Flute Length 1.6900 42.93MM
Cutter Dia 0.5630 14.30MM
Cut Dia Min 0.5630 14.30MM
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
