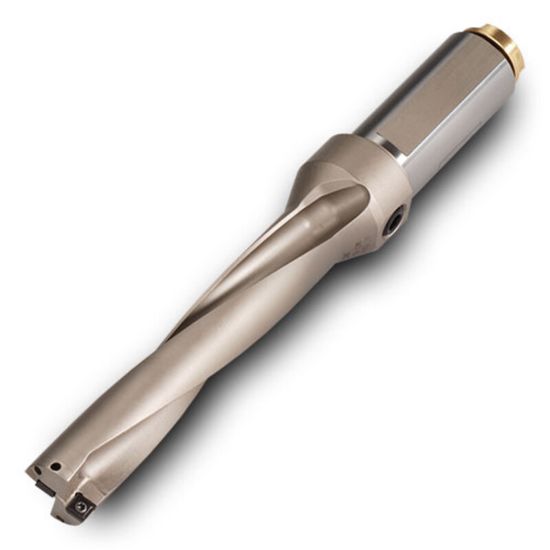

INGERSOLL Q0135067N5R01 0.531 (13.49 mm) Square Insert Indexable Drill s|L:D Ratio - 5:1|

ISO: Q0135067N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6180983
Delivery date: 3-5 days
$588.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flute Length 2.6500 67.31MM
Dia Deep 5.0XD
Cut Dia Min 0.5312 13.49MM - 17/32
Cutter Dia 0.5313 13.50MM - 17/32
Overall Len 5.9800 151.89MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
