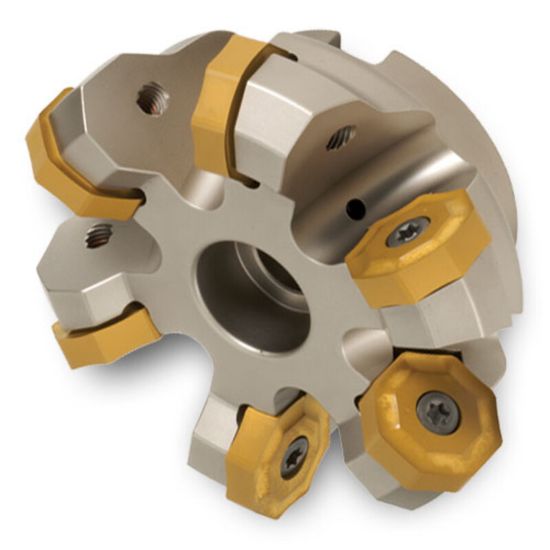

Picture of INGERSOLL OP6N-60R01 Milling Cutter 42.0° 6.000 Shell Arbor 1.5000 10 Flute 0.2 Max DOC 2.375 OAL

INGERSOLL OP6N-60R01 Milling Cutter 42.0° 6.000 Shell Arbor 1.5000 10 Flute 0.2 Max DOC 2.375 OAL

ANSI: OP6N-60R01

ISO: OP6N-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030358
Delivery date: 3-5 days
$1,474.67

Details

16 CORNER GENERAL PURPOSE MILL. GREAT FOR ALL KINDS OF MATERIALS AND APLICATIONS FROM ROUGHING TO FINISHING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Cut Dia Max 6.5400 166.12MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 6.0000 152.40MM
Overall Len 2.3750 60.33MM
Insert Size Ic 9
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2000
Flutes/Inserts 10
Cutting & Machining Properties
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Coolant Thru No
