  • INGERSOLL OP6N-25R01 Milling Cutter 42.0° 2.500 Shell Arbor 0.7500 5 Flute Coolant 0.2 Max DOC 1.570 OAL

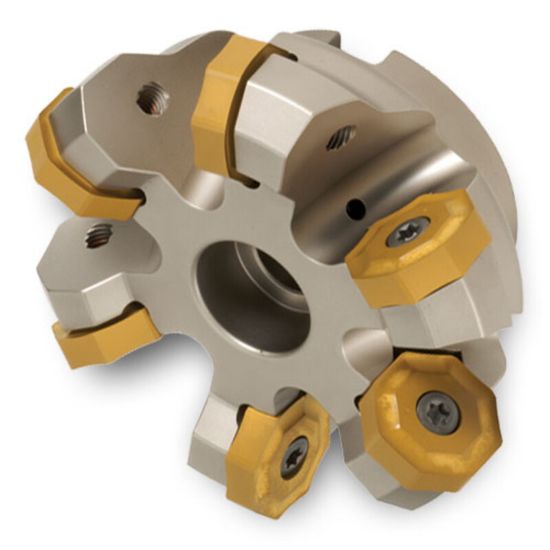

Picture of INGERSOLL OP6N-25R01 Milling Cutter 42.0° 2.500 Shell Arbor 0.7500 5 Flute Coolant 0.2 Max DOC 1.570 OAL

INGERSOLL OP6N-25R01 Milling Cutter 42.0° 2.500 Shell Arbor 0.7500 5 Flute Coolant 0.2 Max DOC 1.570 OAL

ANSI: OP6N-25R01

ISO: OP6N-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030354
Delivery date: 3-5 days
$615.07

Details

16 CORNER GENERAL PURPOSE MILL. GREAT FOR ALL KINDS OF MATERIALS AND APLICATIONS FROM ROUGHING TO FINISHING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Package Size 1
Application Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2000
Cutter Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 9
Cut Dia Max 3.0400 77.22MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Octagonal
Insert Style ON
