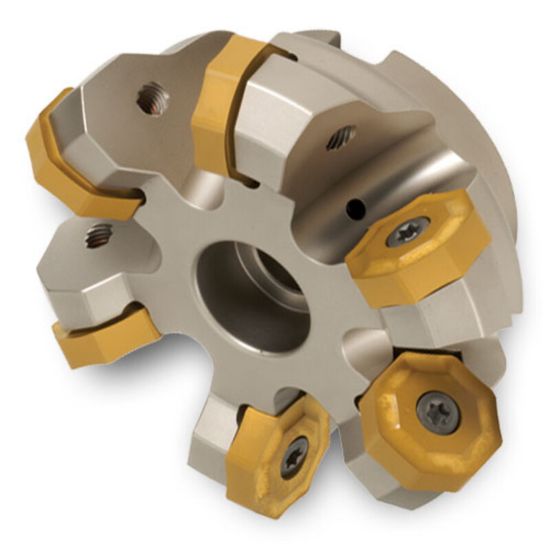

Picture of INGERSOLL OP6N-12R01 Milling Cutter 42.0° 12.00 Shell Arbor 2.5000 16 Flute 0.2 Max DOC 2.375 OAL

INGERSOLL OP6N-12R01 Milling Cutter 42.0° 12.00 Shell Arbor 2.5000 16 Flute 0.2 Max DOC 2.375 OAL

ANSI: OP6N-12R01

ISO: OP6N-12R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030361
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

16 CORNER GENERAL PURPOSE MILL. GREAT FOR ALL KINDS OF MATERIALS AND APLICATIONS FROM ROUGHING TO FINISHING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Face Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2000
Insert Size Ic 9
Flutes/Inserts 16
Cut Dia Max 12.5400 318.52MM
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Overall Len 2.3750 60.33MM
Cutter Dia 12.0000 304.80MM
Cut Dia Min 12.0000 304.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Octagonal
Coolant Thru No
Insert Style ON
