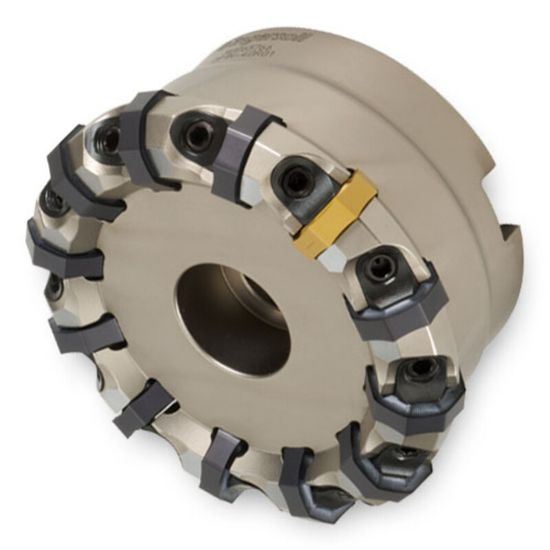

Picture of INGERSOLL OP1N-80R01 Milling Cutter 43.0° 8.000 Shell Arbor 2.5000 24 Flute 0.2 Max DOC 2.375 OAL

INGERSOLL OP1N-80R01 Milling Cutter 43.0° 8.000 Shell Arbor 2.5000 24 Flute 0.2 Max DOC 2.375 OAL

ANSI: OP1N-80R01

ISO: OP1N-80R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030348
Delivery date: 3-5 days
$3,266.67

Details

16 CORNER GENERAL PURPOSE MILL. GREAT FOR ALL KINDS OF MATERIALS AND APLICATIONS FROM ROUGHING TO FINISHING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Application Face Milling
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutter Dia 8.0000 203.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 8.5300 216.66MM
Flutes/Inserts 24
Insert Size Ic 9
Depth Of Cut Max 0.2000
Cut Dia Min 8.0000 203.20MM
Overall Len 2.3750 60.33MM
Cutting & Machining Properties
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Coolant Thru No
