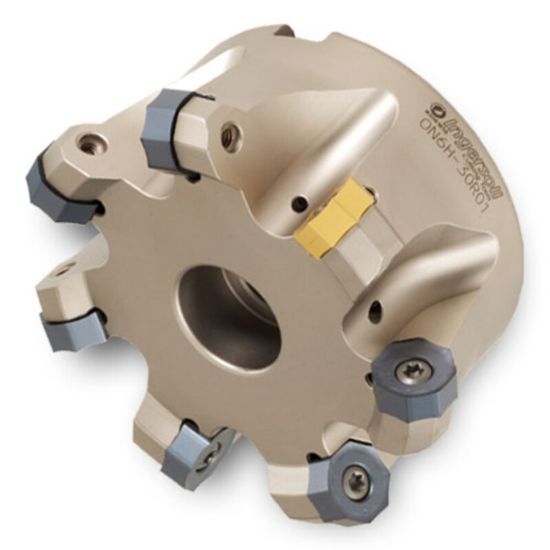

Picture of INGERSOLL ON6H-60R01 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 12 Flute 0.12 Max DOC 2.375 OAL

INGERSOLL ON6H-60R01 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 12 Flute 0.12 Max DOC 2.375 OAL

ANSI: ON6H-60R01

ISO: ON6H-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030044
Delivery date: 3-5 days
$1,484.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 6.0000 152.40MM
Flutes/Inserts 12
Depth Of Cut Max 0.1200
Overall Len 2.3750 60.33MM
Insert Size Ic 5
Tool Material Steel
Cut Dia Max 6.3300 160.78MM
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Octagonal
Insert Style ON
Coolant Thru No
