  • INGERSOLL ON6H-50R01 Milling Cutter 45.0° 5.000 Shell Arbor 1.5000 10 Flute Coolant 0.12 Max DOC 2.375 OAL

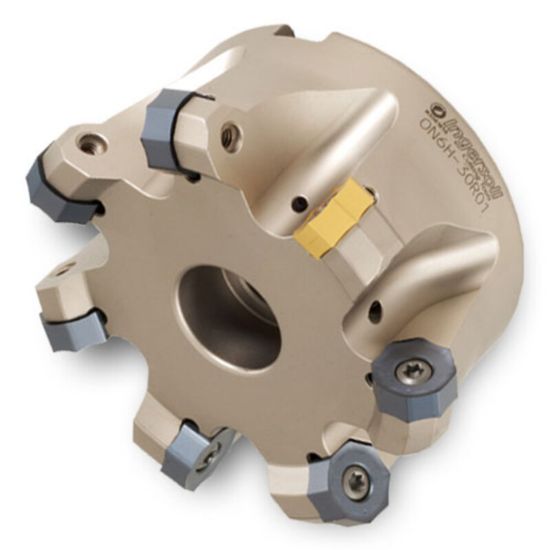

Picture of INGERSOLL ON6H-50R01 Milling Cutter 45.0° 5.000 Shell Arbor 1.5000 10 Flute Coolant 0.12 Max DOC 2.375 OAL

INGERSOLL ON6H-50R01 Milling Cutter 45.0° 5.000 Shell Arbor 1.5000 10 Flute Coolant 0.12 Max DOC 2.375 OAL

ANSI: ON6H-50R01

ISO: ON6H-50R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030043
Delivery date: 3-5 days
$1,148.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Made In USA No
Package Size 1
Application Face Milling
Dimensional Specifications
Depth Of Cut Max 0.1200
Overall Len 2.3750 60.33MM
Cut Dia Min 5.0000 127.00MM
Flutes/Inserts 10
Insert Size Ic 5
Tool Material Steel
Cut Dia Max 5.3300 135.38MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 5.0000 127.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
