  • INGERSOLL ON6H-25R01 Milling Cutter 45.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.12 Max DOC 1.570 OAL

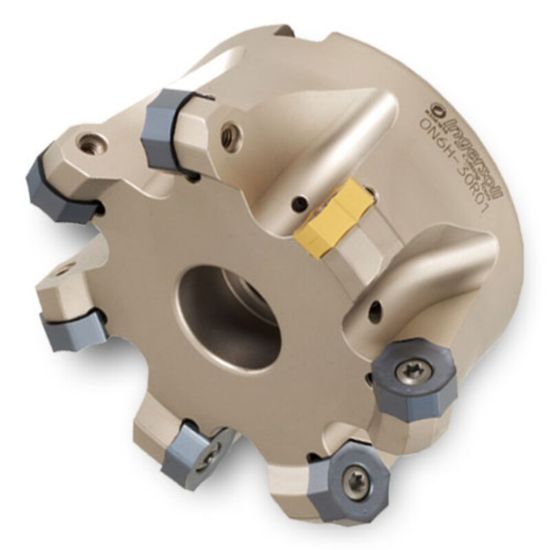

Picture of INGERSOLL ON6H-25R01 Milling Cutter 45.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.12 Max DOC 1.570 OAL

INGERSOLL ON6H-25R01 Milling Cutter 45.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.12 Max DOC 1.570 OAL

ANSI: ON6H-25R01

ISO: ON6H-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030038
Delivery date: 3-5 days
$696.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 2.8300 71.88MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1200
Cutter Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Octagonal
Insert Style ON
Coolant Thru Yes
