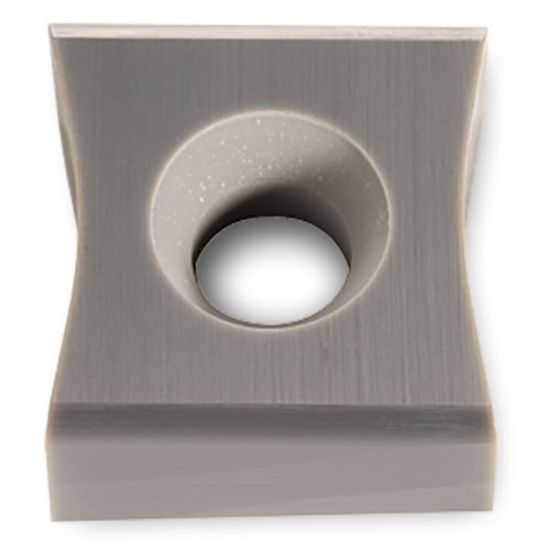

Picture of INGERSOLL NCE324R107 IN70N Milling Insert On Edge 0.031 VMax

INGERSOLL NCE324R107 IN70N Milling Insert On Edge 0.031 VMax

ANSI: NCE324R107 IN70N

ISO: NCE324R107 IN70N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5820427
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

HIGH SPEED MACHINING OF GRAY IRON

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Grade IN70N
Application Milling Insert
Package Size 10
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 32
Cut Rating Ductile Iron, Gray Iron
Depth Of Cut Max 0.4750
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Cutting Edge Mat Silicon Nitride
Insert Style NC
