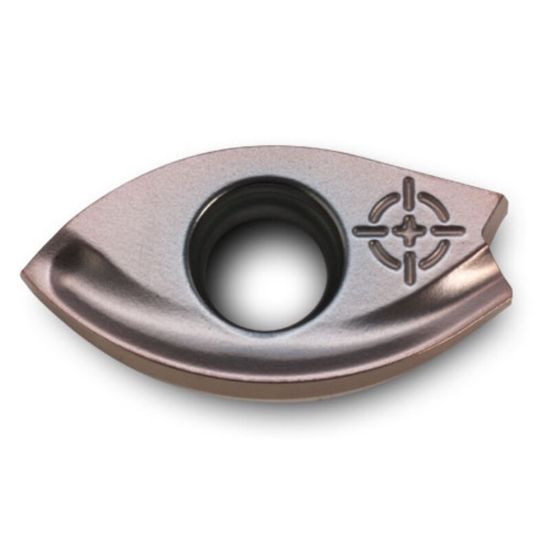

INGERSOLL NBEU1603R IN2530 Milling Insert Ball Mill 0.312 TiAIN + TiN ProDuo Insert

ANSI: NBEU1603R IN2530

ISO: NBEU1603R IN2530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6128067
Delivery date: 3-5 days
$28.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STEEL,STAINLESS AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Grade IN2530
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Coating TiAIN + TiN
Package Size 10
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 16
Corner Radius 0.3120 7.92MM
Depth Of Cut Max 0.2690
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Oval
Insert Style NB
Cutting Edge Mat Carbide
