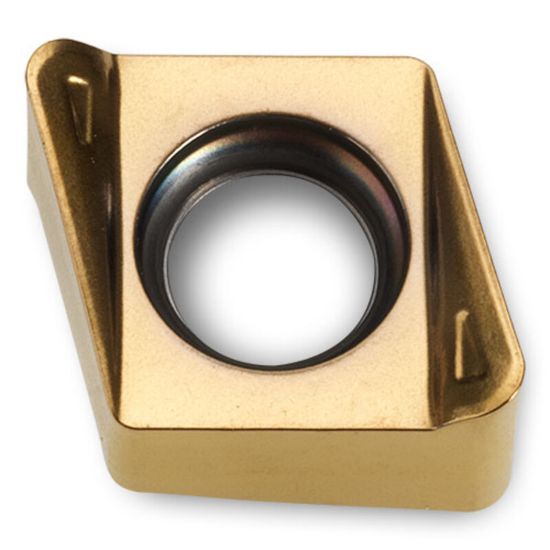

INGERSOLL MNHU060316R IN2510 Milling Insert Paralelagram 0.062 TiAIN + TiN Tetra Insert Carbide

ANSI: MNHU060316R IN2510

ISO: MNHU060316R IN2510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6154137
Delivery date: 3-5 days
$15.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

HARD GRADE FOR STEEL,STAINLESS,IRON AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Coating TiAIN + TiN
Package Size 10
Insert Type Negative
Made In USA No
Shipping State Illinois
Grade IN2510
Insert/Tool Insert
Application Milling Insert
Dimensional Specifications
Insert Size Ic 6
Corner Radius 0.0620 1.57MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Depth Of Cut Max 0.2600
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style MN
