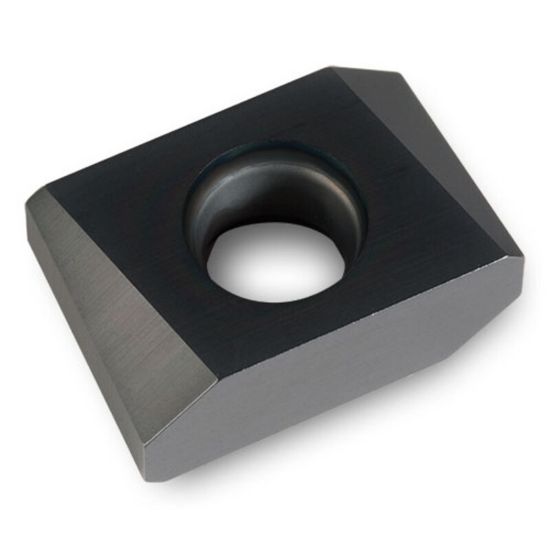

INGERSOLL LSE324R045-S IN4040 Milling Insert On Edge 0.038 TiAIN + AlCrO Blackmax

ANSI: LSE324R045-S IN4040

ISO: LSE324R045-S IN4040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907255
Delivery date: 3-5 days
$19.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STAINLESS AND SOFTER STEEL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Insert Application Roughing, Semi Finishing
Grade IN4040
Made In USA No
Insert Type Negative
Shipping State Illinois
Package Size 10
Coating TiAIN + AlCrO
Dimensional Specifications
Depth Of Cut Max 0.4100
Insert Size Ic 32
Cut Rating <30HRC Steel, Stainless Steel
Corner Radius 0.0380 0.97MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LS
Cutting Edge Mat Carbide
