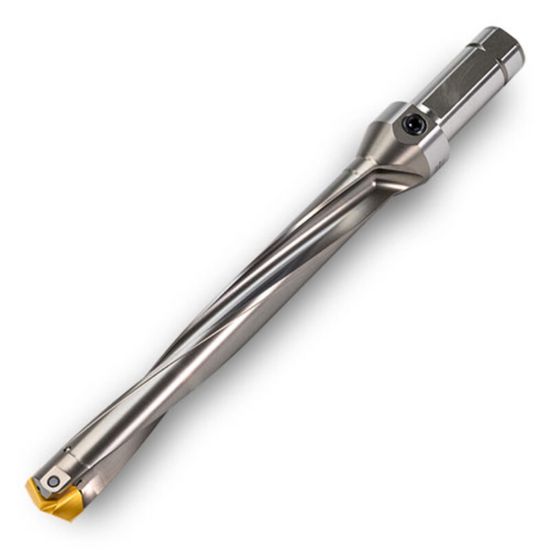

INGERSOLL LD3800304N6R01 1.4961 (38.0 mm)-1.5315 (38.9 mm) SpadeTwist Body

ISO: LD3800304N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6185632
Delivery date: 3-5 days
$998.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.4961 38.00MM
Cut Dia Min 1.4961 38.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.5312 38.90MM - 1-17/32
Flutes/Inserts 2
Dia Deep 8.0XD
Included Angle 140°
Flute Length 12.2000 309.88MM
Machine Side Connection Size 1.2500 31.75MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
